XZ Series

PRODUCTOS


Screen Features


--Deeper Black

--Higher Brightness & Contrast

--Easy Install & Smooth Surface

--Pixel to pixel without gap, Seamless with good alignment

CONTACT US


Specification Details


Technical SpecificationsProduct Model
Pixel Pitch (mm)XZ 2.97 IndoorXZ 3.91 Indoor
XZ 3.91 OutdoorXZ 4.81 Outdoor
Pixel Density (dots / m²)112896
655366553643222
Pixel ColorRGB Full Color
LED Size / ColorSMD 1515SMD 2020 SMD 1921SMD 1921
Module Size (mm)250 mm X 250 mm
Module Resolution (dots)84 dots X84 dots64 dots X64 dots64 dots X64 dots52 dots X52 dots
Refresh Rate (Hz) 1920Hz ~ 3840 Hz
Scan Mode1/28 Scan1/16 Scan1/16 Scan1/13 Scan
Brightness (nits)900 ~1200 nits900 ~1200 nits4000 ~5000 nits4500 ~5500 nits

View Angle140° / 140°
Best Viewing Distance≥3 m≥4 m≥4 m≥5 m
Frame Frequency (Hz)60 Hz
Working Voltage (V)220V / 110V~220V
Power Consumption Max/Avg (W/m²)1000W /330 W800W /240 W800W /200 W800W /200 W
IP GradeIP31IP31IP65IP65
Life Span100000 hours

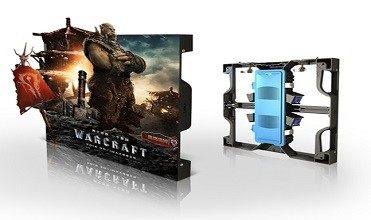

Rental LED Display


Rental LED Display Advantages


1. LED rental box splicing size: 500 mmX500 mm



2. The die-casting aluminum box material is made of aluminum-magnesium-zinc alloy, which is not easy to be deformed, corrosion-resistant and heat-dissipating.



3. Lightweight, ultra-thin, quick installation design, complete the installation and disassembly of the display screen in a short time;



4. Waterproof effect, with IP65 protection level, suitable for outdoor rental



5. High gray level and high refresh rate design, gray level 14 bit, refresh rate > 1920Hz;  excellent heat dissipation design and heat dissipation performance.








20190826150205917.jpg  Connection lock  power flight cable  cabinet handle  signal flight cable  Back cover box  Lock





LED rental screen features:


1. LED display hoisting and mounting test installation



2. Lifting size is 500mm (ie. hanging bar or hanging beam)



3. All parts can be used for rear maintenance, and the rear maintenance module can be removed from the back.






Some Reference Projects:





Our Advantages:


1. Highest cost-effective price.
2. With pure gold wire connection in LED.
3. All private information will be well protected.
4. Variety of customized products to satisfy different requests.
5. Goods be examined before delivery. Professional QC team.
6. Top Quality & Reasonable Price & Responsible After Service.
7. All inquiry will be answered within 24 hours by a well-trained and experienced staff.
8. The price depends on the quantity. We can provide you with the best competitive price in the market with the
same or even better quality.

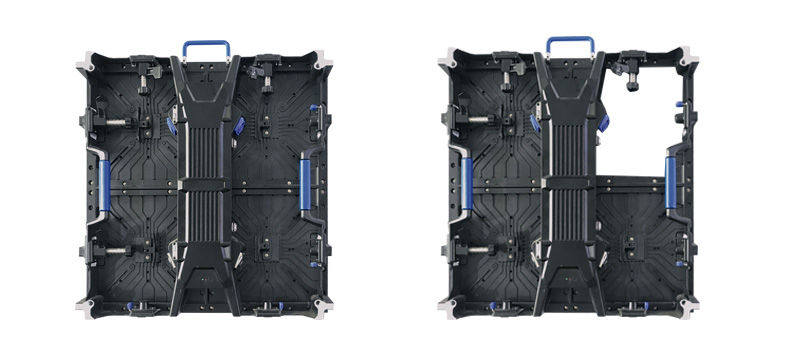

Cabinet Details





Aluminum Cabinet

Die-casting aluminum cabinet of raw materials using aluminum-margnesium zinc alloy custom is more difficult to deformation, corrosion, heat extended product life.






Much lighter Aluminum Cabinet easy for movable use and installation.




Much stronger Lock, Longer life span,.

Wide handle, easy for your team to install.

Professional air plug, safty, stable, easy operation.

Double signal contact, make sure the signal transmission.
