GH Plus Series

PRODUCTOS


Screen Features


--Ultra High Brightness

--Front & Rear Maintenance

--SMD Outdoor LED Display

--Independent Waterproof Module

--High Refresh Rate & High Contrast

--Lower Power Consumption & Environmental Protection

CONTACT US


Specification Details


Technical SpecificationsProduct Model
Pixel Pitch (mm)GH 4 OutdoorGH 5 OutdoorGH 6.67 OutdoorGH 8 OutdoorGH 10 Outdoor
Pixel Density (dots / m²)62500
40000245001562510000
Pixel ColorRGB Full Color
LED Size / ColorSMD 1921SMD 2727SMD 2727SMD 3535SMD 3535
Module Size (mm)320 mm* 160 mm
Module Resolution (dots)80 dots * 40 dots64 dots *32 dots48 dots * 24 dots40 dots * 20 dots32 dots * 16 dots

Refresh Rate (Hz)

1920 Hz
Scan Mode1/10 Scan1/8 Scan1/6 Scan1/5 Scan1/2 Scan
Brightness (nits)3500 ~ 4500 nits3500 ~ 5500 nits3500 ~ 5500 nits5000 ~ 6000 nits5000 ~ 6500 nits

View Angle140° / 140°
Best Viewing Distance≥ 4 m≥ 5 m≥ 6 m≥ 8 m≥ 10 m
Frame Frequency (Hz)60 Hz
Working Voltage (V)220 V / 110 V ~ 220 V
Power Consumption Max/Avg (W/m²)732 W / 220 W683 W / 205 W540 W / 163 W610 W / 183 W700 W / 175 W
IP GradeIP65
Life Span100000 hours




Common Cathode Technology

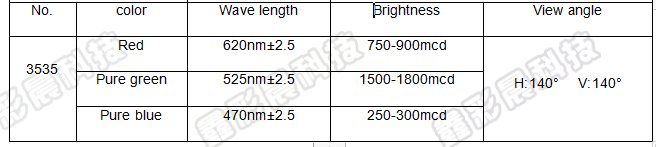

No.ColorWave LengthBrightnessView Angle
3535
Red620 nm±2.5750~900 mcd

H: 140°  V:140°

Pure Green525 nm±2.51500~1800 mcd
Pure Blue470 nm±2.5250~300 mcd


No need Air-conditioner anymore, also saving lots of electricity!

2.8+3.8V Energy-saving Power Supply + 2049 Energy-saving IC

Power Consumption is reduced 60%, screen temperature reduced 50%


Our Advantages:


1. Highest cost-effective price.
2. With pure gold wire connection in LED.
3. All private information will be well protected.
4. Variety of customized products to satisfy different requests.
5. Goods be examined before delivery. Professional QC team.
6. Top Quality & Reasonable Price & Responsible After Service.
7. All inquiry will be answered within 24 hours by a well-trained and experienced staff.
8. The price depends on the quantity. We can provide you with the best competitive price in the market with the same or even better quality.
